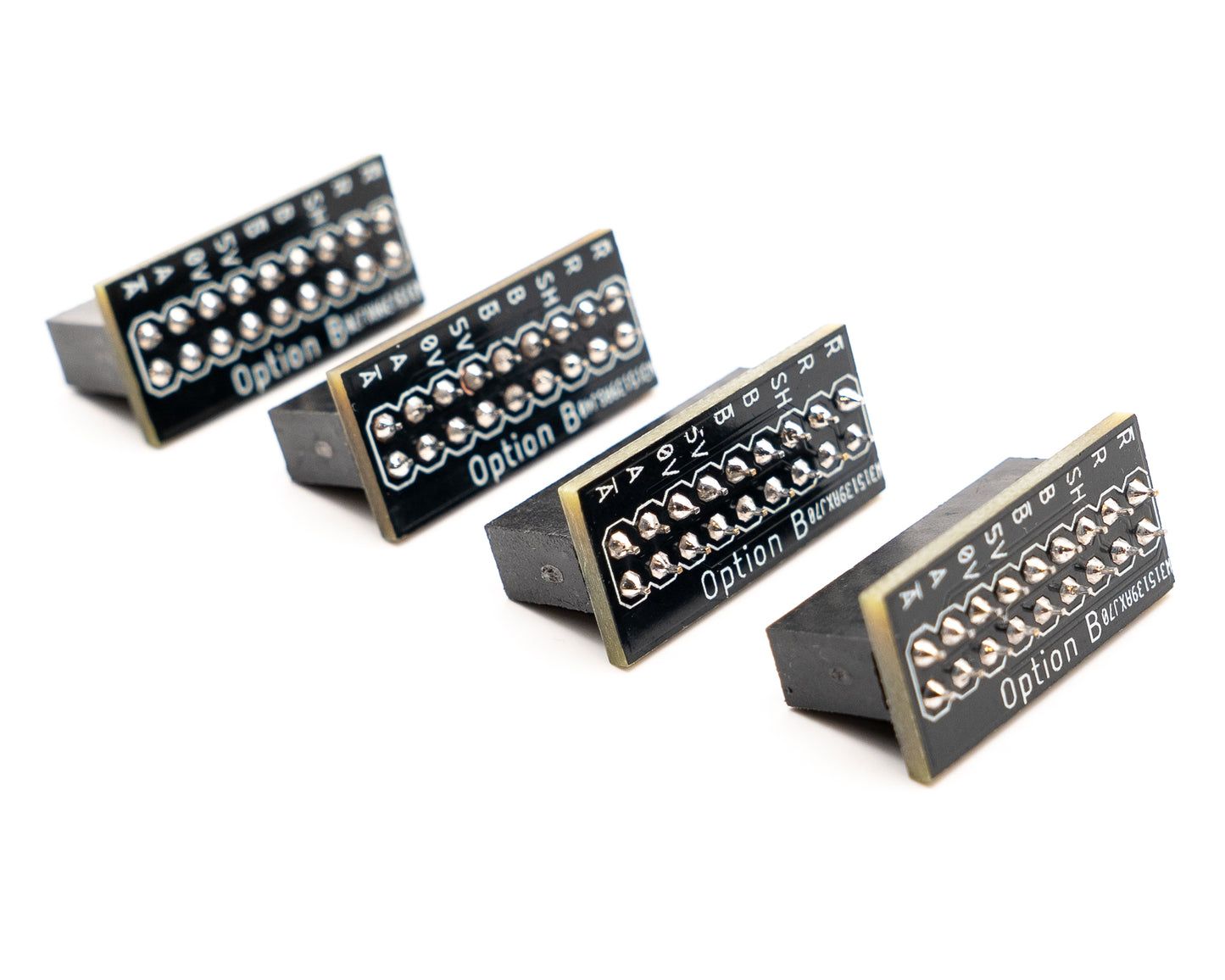

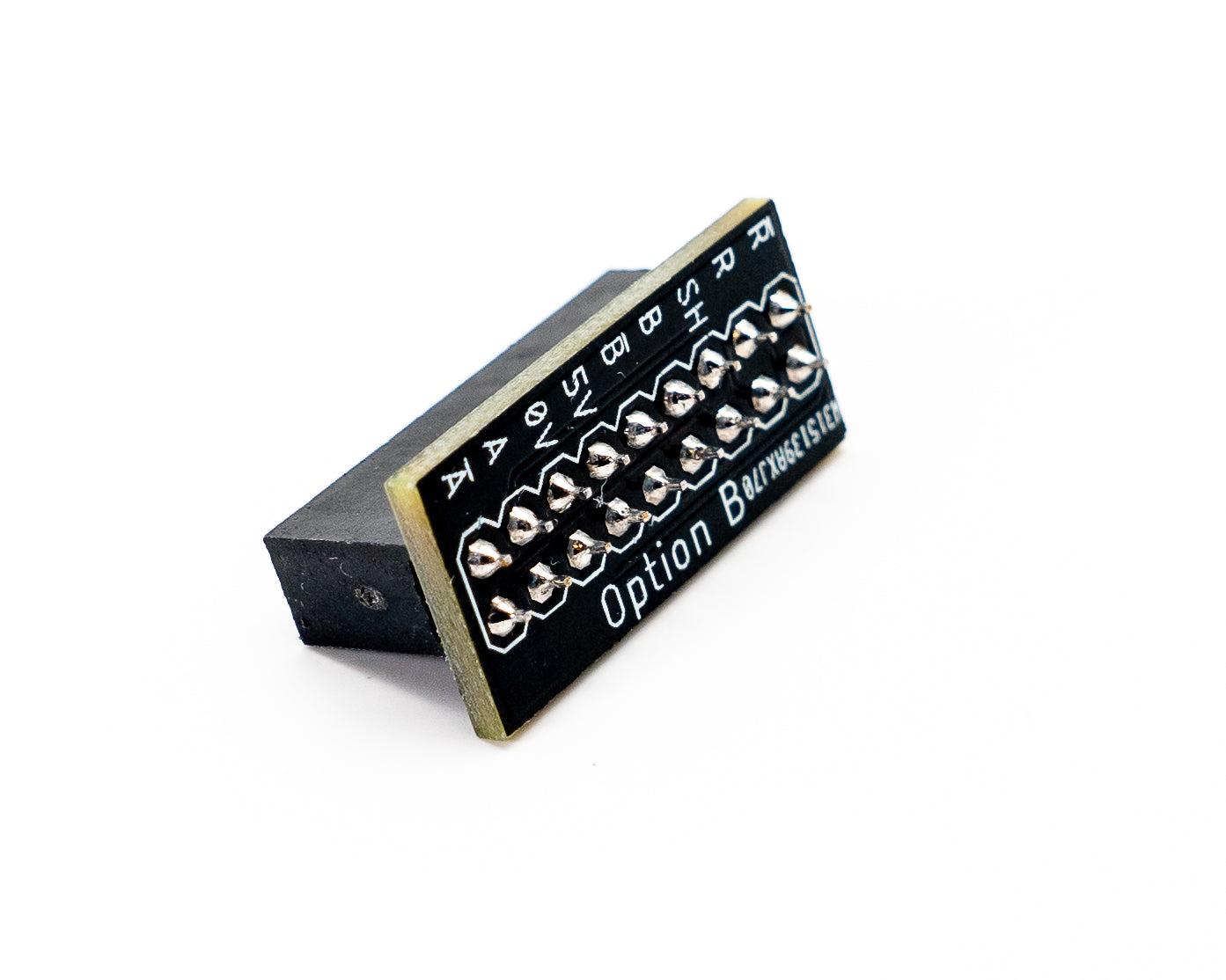

Pin input mapping board can be used to re-configure TDA-400 or TDA-420 for use with different DRO scales.

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out
Shipping calculated at checkout.

Ships in 2-5 business days

View full details

Pinout daughter boards are used to configure the input pinout of the TDA-400 and TDA-420 scale interface adapter.

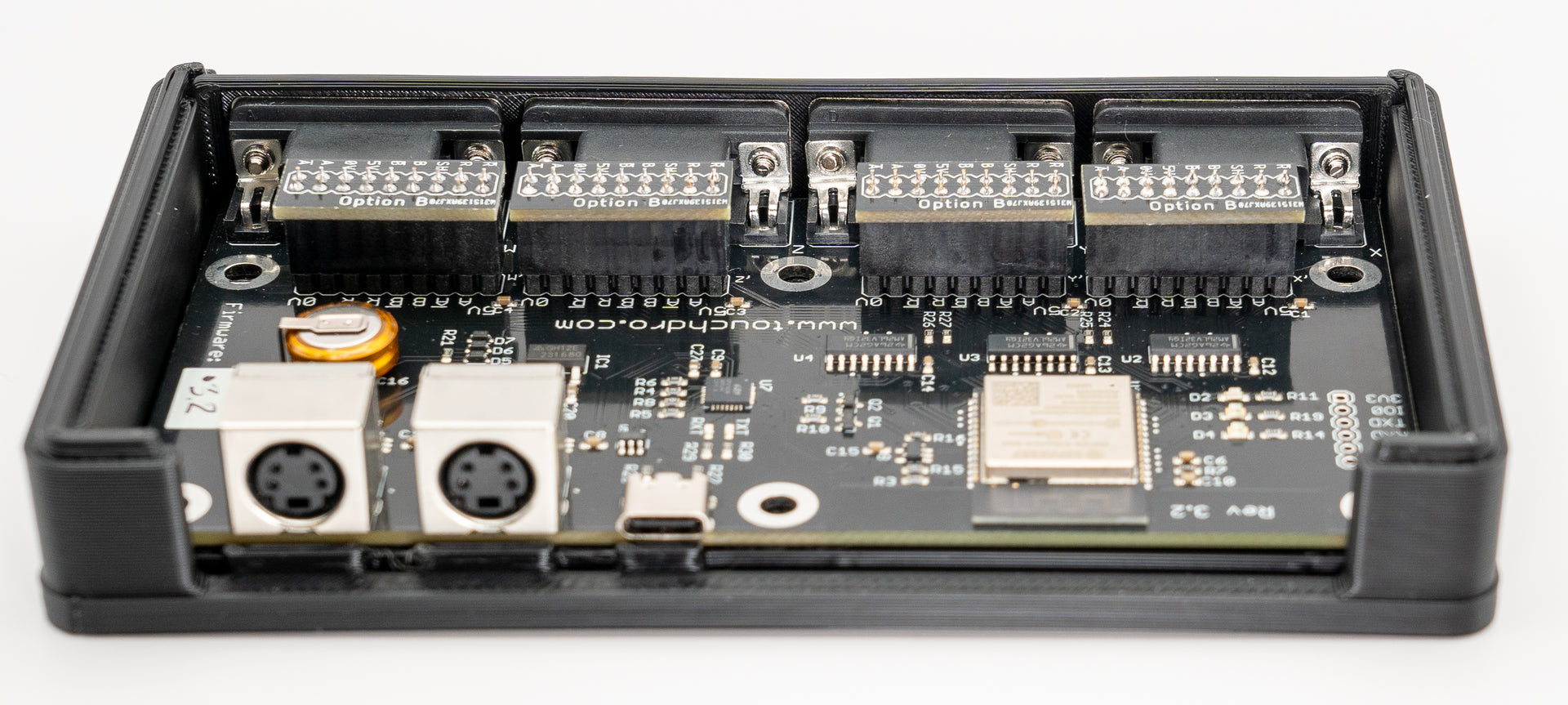

TouchDRO adapter with plugged in pin mapping baords

Pinout Options

Brand 1 2 3 4 5 6 7 8 9
Acu-Rite SENC Scales   A A' B B' OV/Gnd Vcc/5V R R'
Electronica/EMS, PM MagExact +Z Z' Vcc/5V Shield OV/Gnd A A' B' B
Ditron, Sino, Aikron, Easson, Vevor A' 0V B' Shield R'/Z' A +5V B R/Z
Generic Chinese Pinout (ToAuto, etc.)  5V 0V  A  B
