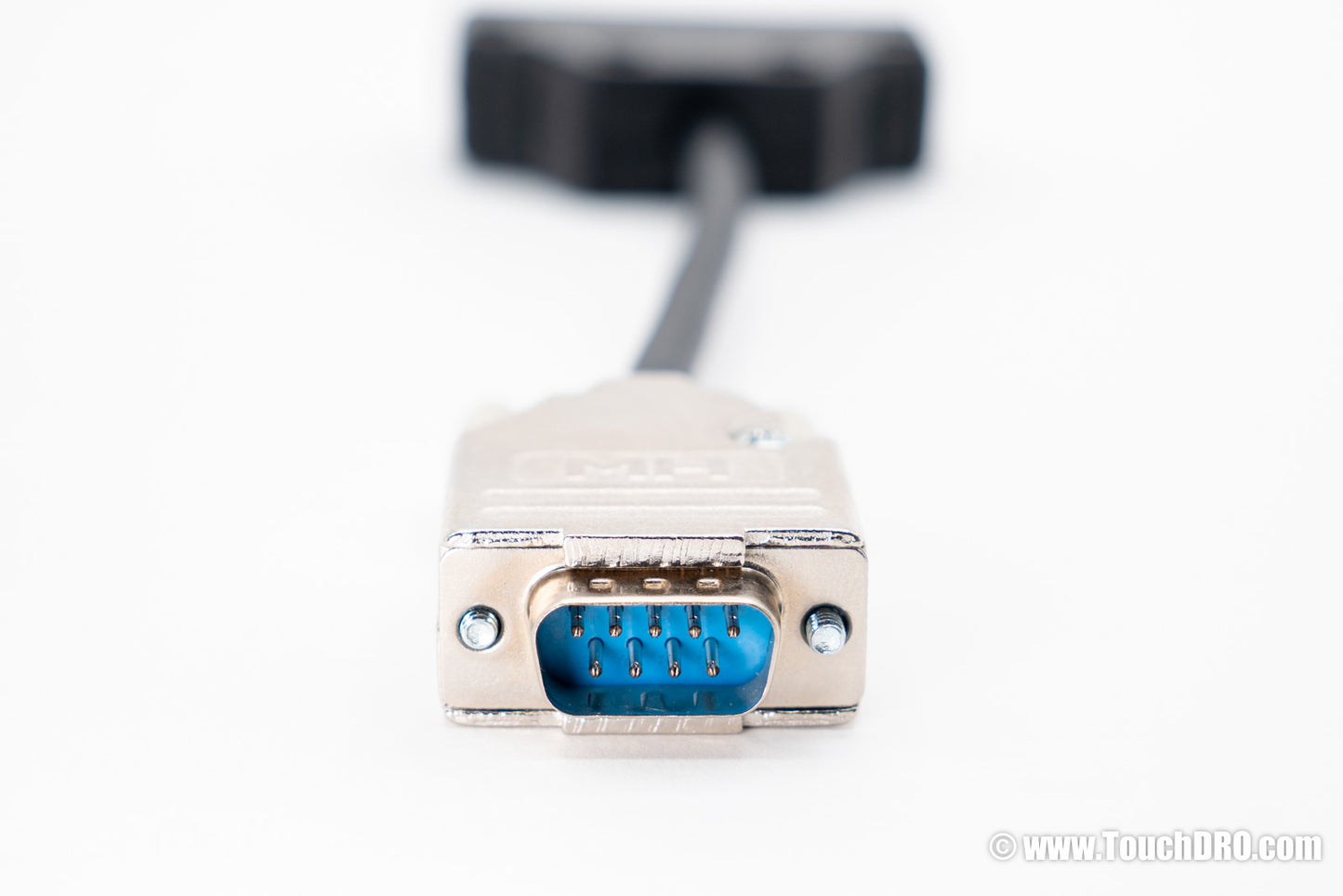

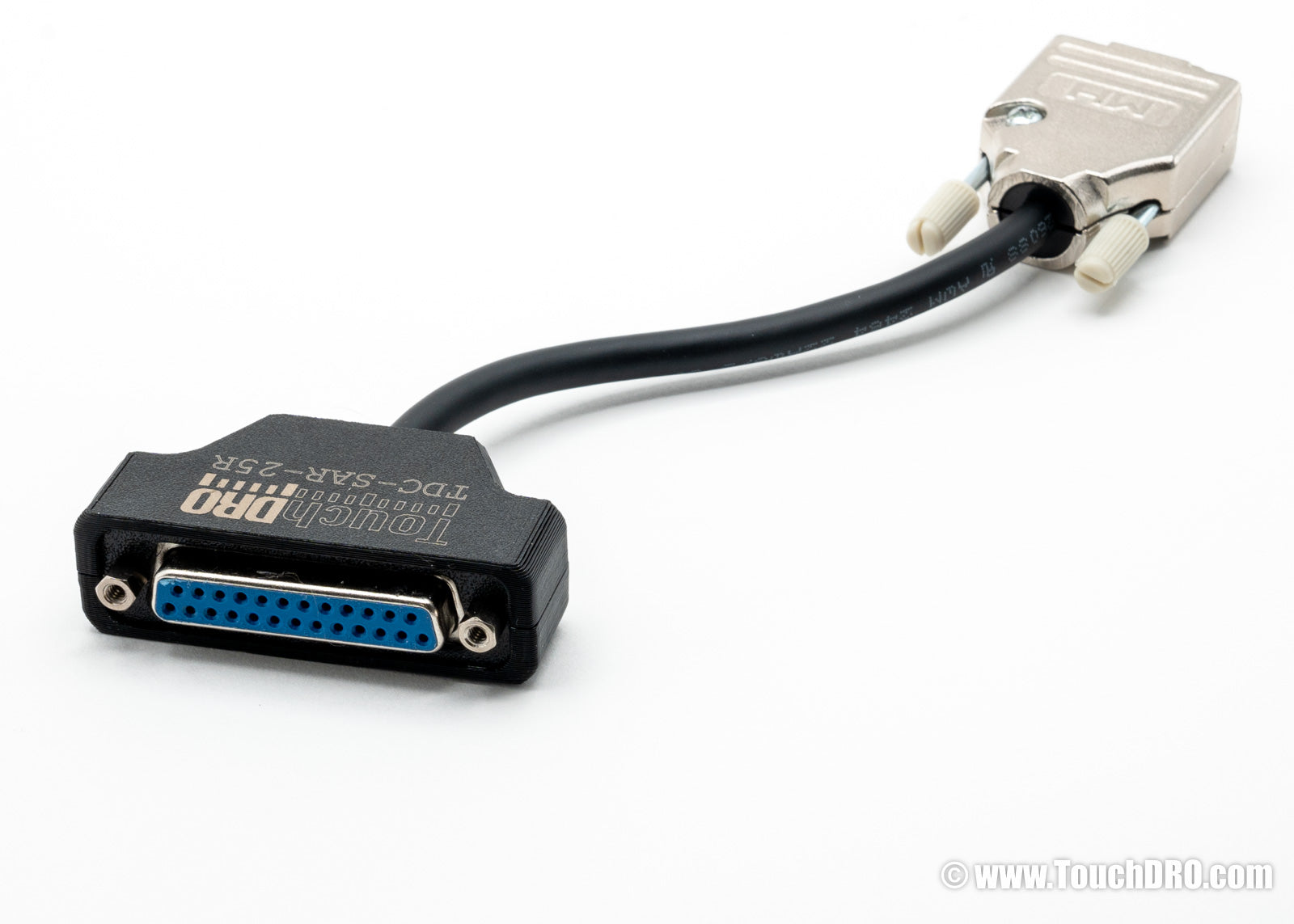

Adapter cable for connecting Sargon DRO scales with DB-25 connector to a TouchDRO TDA-410/420 scale interface adapter or TouchDRO DIY Kit. Shielded cable carries Channel A, Channel B, and Reference (index) signals.
System Requirements:
- TouchDRO TDA-410* or TDA-420* scale interface adapter or DIY kit
- Sargon DRO scale with a DB-25 connector
* The cable wiring follows the default TouchDRO TDA-4xx pinout. If you've replaced your adapter's pin-mapping daughter board for a different pinout, you'll need the matching pin mapping board for these inputs.
Pack Sizes:
- 1 Cable — for single-axis setups or replacements
- 2 Cables — for 2-axis machines (mill X/Y or lathe X/Z)
- 3 Cables — for 3-axis mill setups (X/Y/Z)
Compatibility:

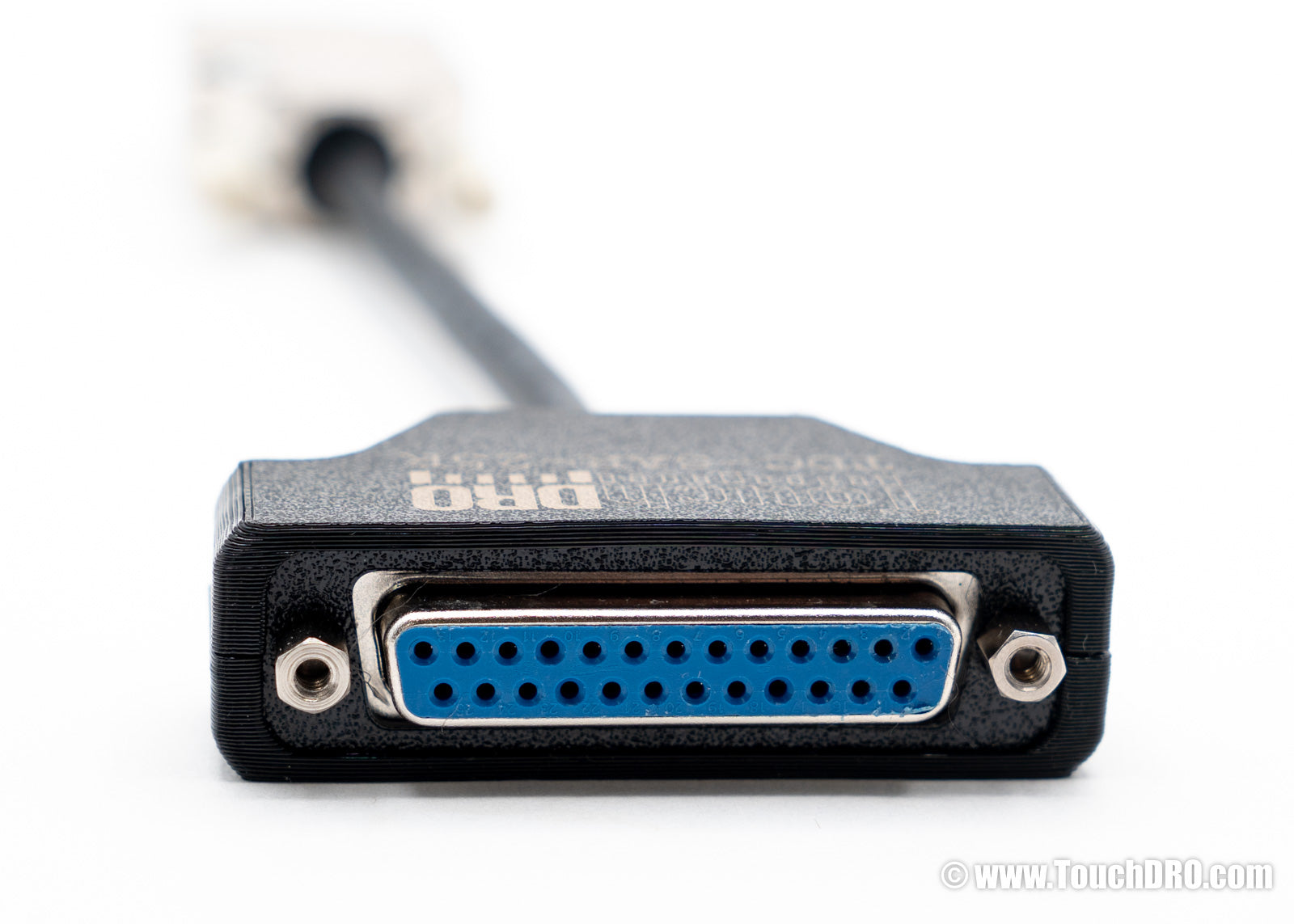

This adapter works with all Sargon-manufactured scales, including those sold under the Enco, Rutland, Ramtek, and Washington brands. If your scale has a 25-pin D-Sub connector, this adapter will work. Make sure the connector on your scale cable looks like the one below.
For more information about Sargon scales, see our Sargon DRO replacement guide.
