Anilam Wizard 6-Pin to TouchDRO Scale Adapter Cable

Anilam Wizard 6-Pin to TouchDRO Scale Adapter Cable

Adapter cable for connecting Anilam Wizard DRO scales with 6-pin Bendix/Amphenol connector to a TouchDRO TDA-410/420 adapter or DIY kit.
$59.00 USD
$59.00 USD
Sale Sold out
  • Ships in 2-5 business days
  • Free domestic shipping on orders over $200
View full details

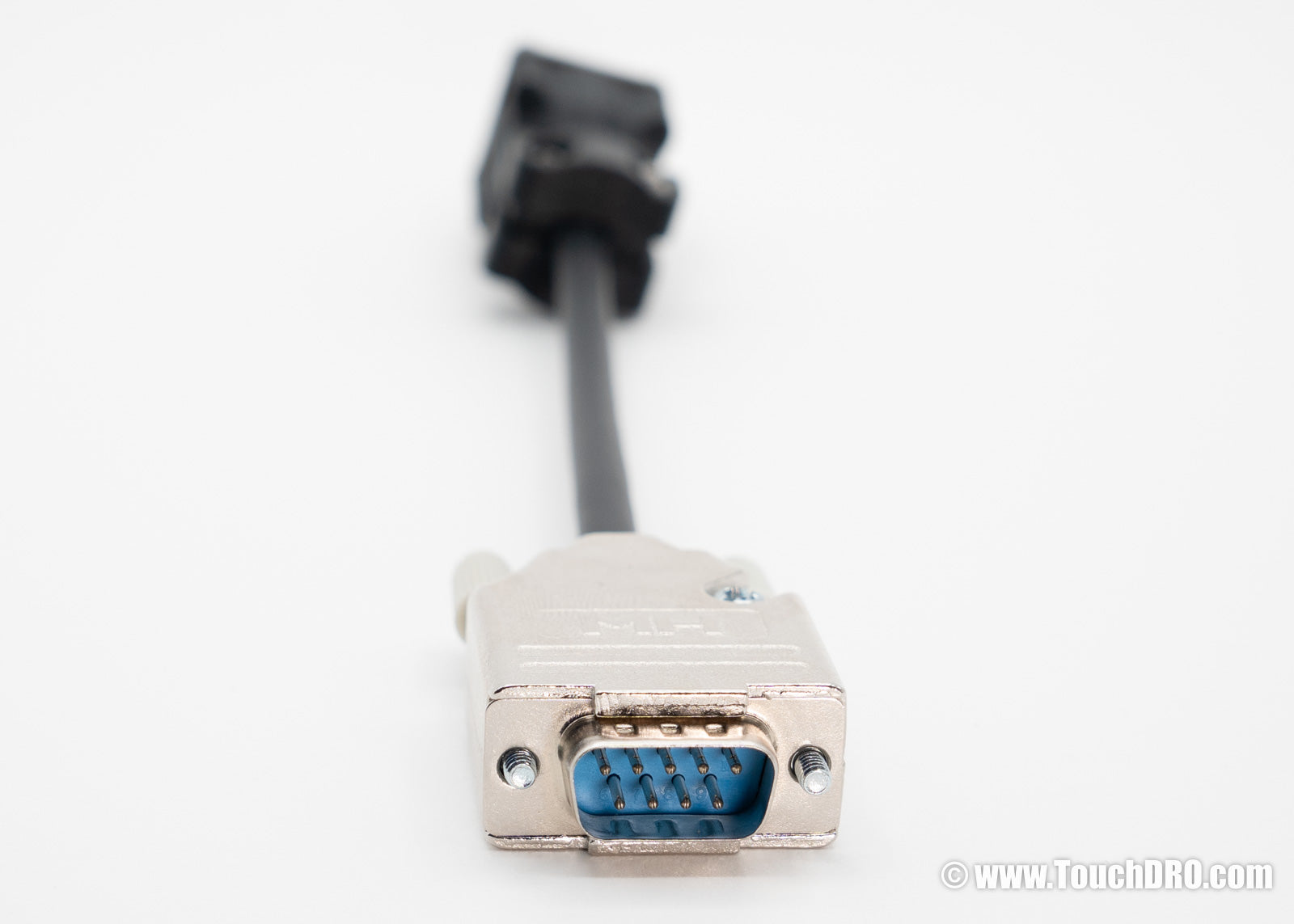

Adapter cable for connecting Anilam Wizard DRO scales with a 6-pin round Bendix/Amphenol twist-lock connector to a TouchDRO TDA-410/420 scale interface adapter or TouchDRO DIY Kit. Shielded 22 AWG cable carries single-ended Quadrature A/B and Reference (index) signals.

System Requirements:

  • TouchDRO TDA-410 or TDA-420 scale interface adapter or DIY kit
  • Anilam Wizard DRO scale with a 6-pin round Bendix/Amphenol twist-lock connector

Pack Sizes:

  • 1 Cable — for single-axis setups or replacements
  • 2 Cables — for 2-axis machines (mill X/Y or lathe X/Z)
  • 3 Cables — for 3-axis mill setups (X/Y/Z)

Compatibility:

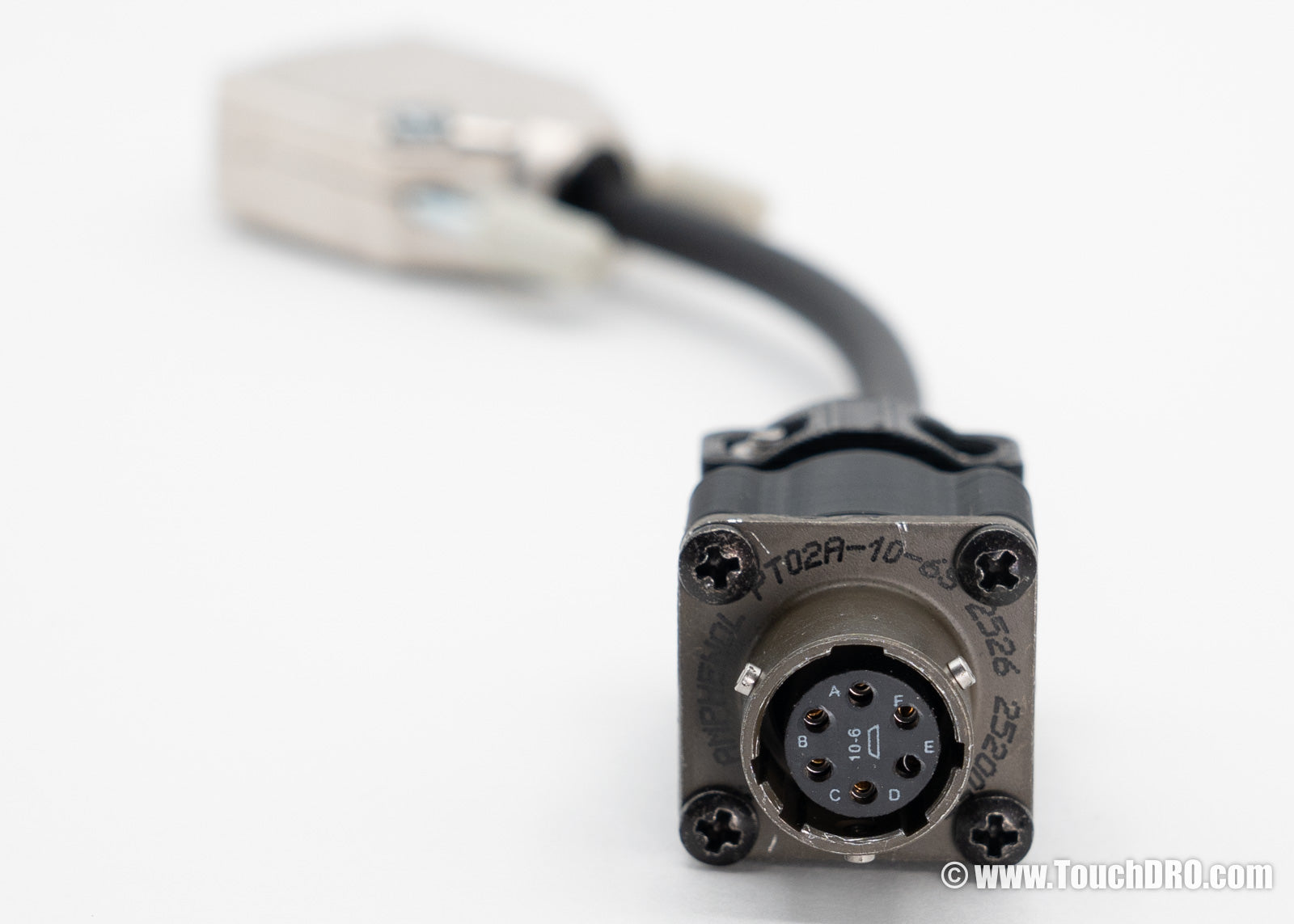

This adapter works only with Anilam Wizard scales that use the 6-pin round Bendix/Amphenol twist-lock connector, as shown below. It is not compatible with 7-pin connector scales.

Anilam scales with DB-9 connectors do not need this adapter — they are compatible with TouchDRO configured for Acu-Rite scales.

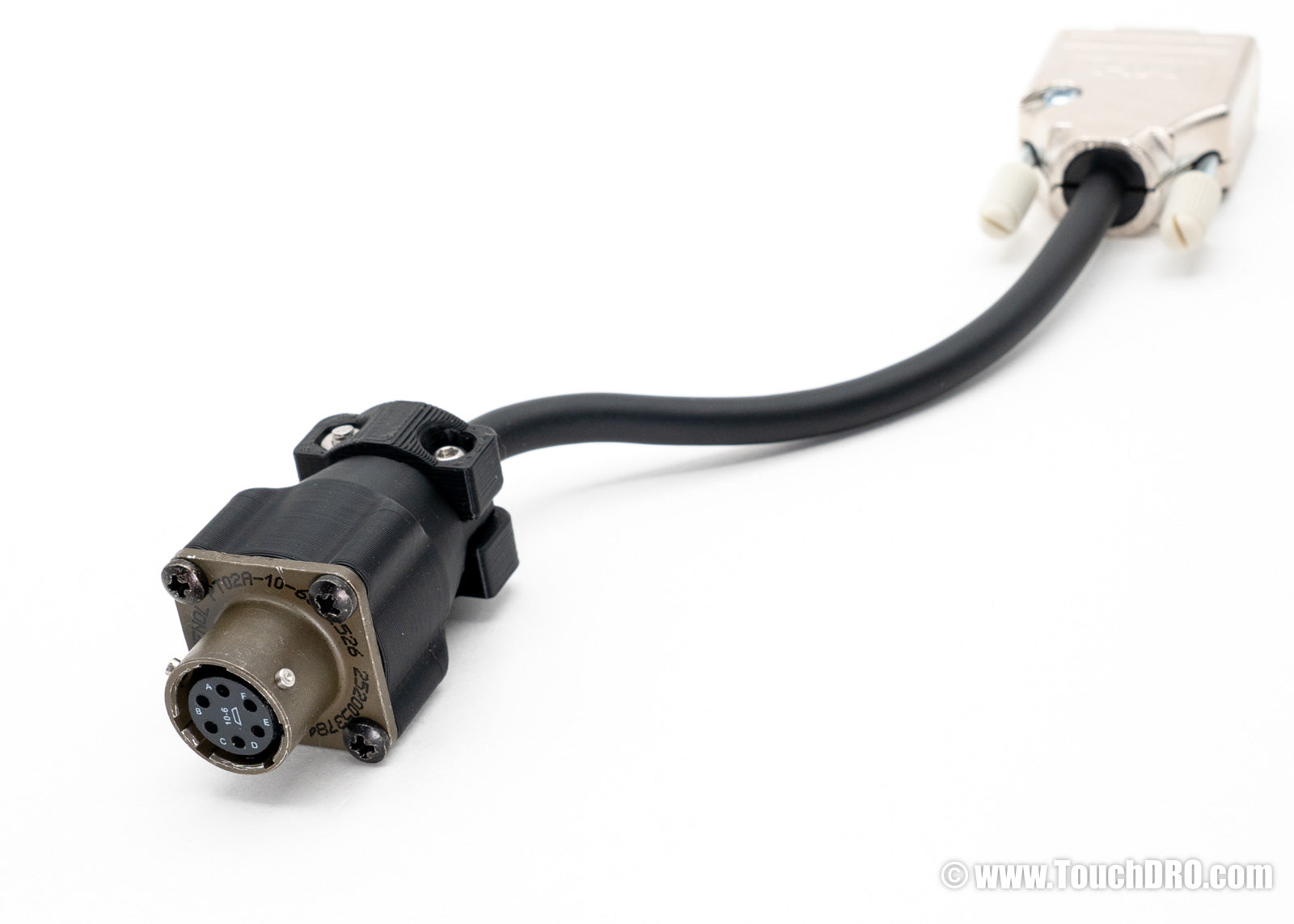

Anilam Wizard scale adapter for TouchDRO

For more information about Anilam scales, see our Anilam Wizard DRO replacement guide.
