Converter for Mitutoyo SPC Scales

Converter for Mitutoyo SPC Scales

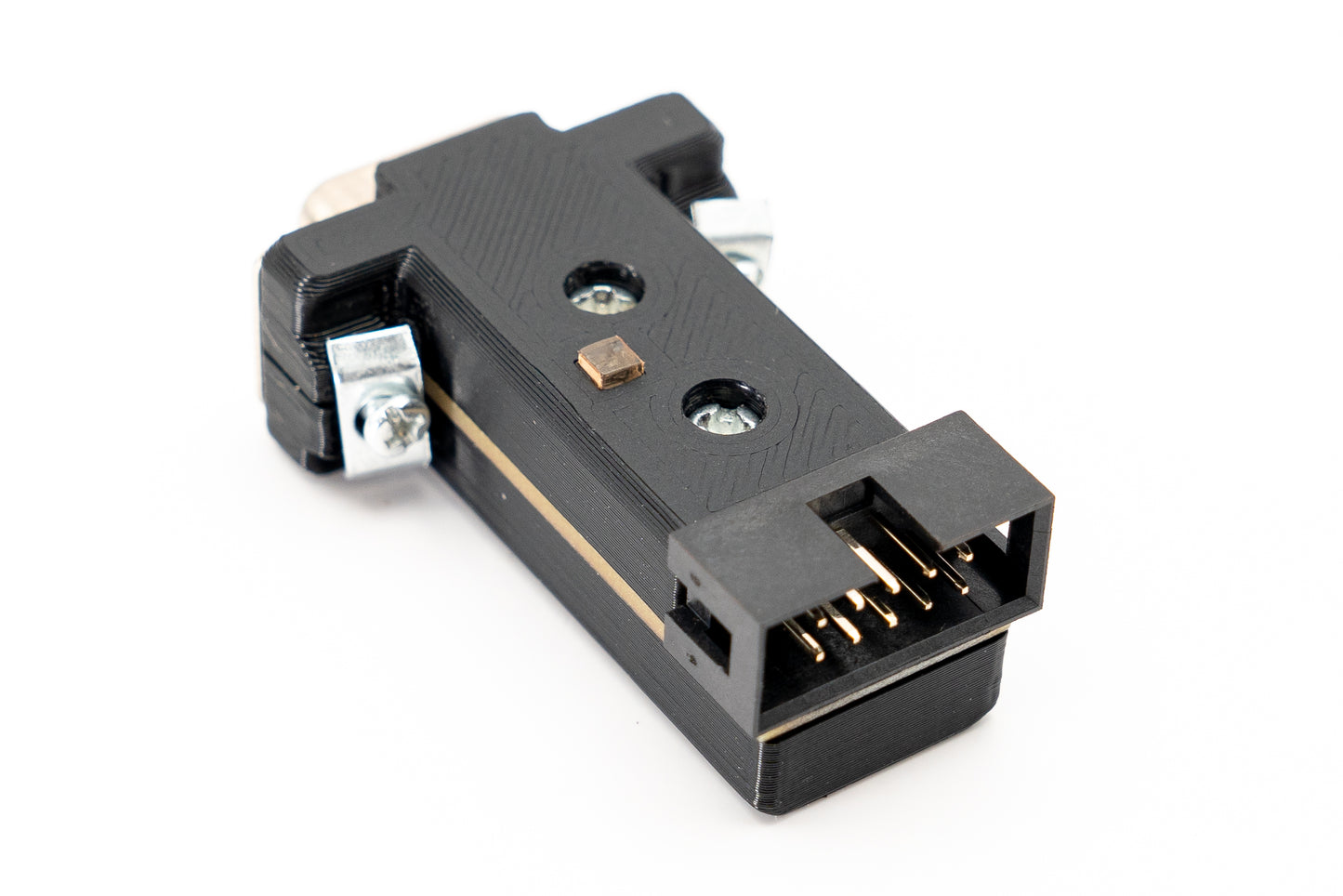

Signal level converter for connecting Mitutoyo Digimatic scales a TouchDRO TDA-400 or TDA-420 scale interface adapter.

$49.00 USD
$49.00 USD
Sale Sold out
  • Ships in 2-5 business days
  • Free domestic shipping on orders over $200
View full details

Signal level converter for connecting Mitutoyo Digimatic SPC scales a TouchDRO TDA-400 or TDA-420 scale interface adapter.

Mitutoyo quill scale plugged into the DRO

System Requirements:

  • TouchDRO TDA-400 or TDA-420 scale interface adapter running firmware v3.2 or newer
  • TouchDRO V3 application build 2024-06-18 or newer
  • Compatible Mitutoyo scale with SPC output (see below)
  • Mitutoyo 905338 (1m) or 905409 (2m) Digimatic SPC Connecting Cable

Compatible Scales:

  • Quill Kit with Absolute Encoder (053906B)
  • Absolute DigiMatic Dial Indicator IDS/IDC (Series 543)
  • Absolute DigiMatic Dial Indicator IDU (Series 575)
  • Absolute DigiMatic Thickness Gauge (Series 547)
  • Absolute DigiMatic Caliper (Series 500 except IP65/66/67 models)
  • Absolute DigiMatic Caliper (Series 550, 551, 573)
  • Absolute DigiMatic Depth Gauge (Series 547)
  • Absolute DigiMatic Bore Gauge (Series 511)
  • Absolute DigiMatic Depth Gauge (Series 571 except IP65/66/67 models)
  • Absolute DigiMatic Scale (Series 572 except IP65/66/67 models)
  • Absolute DigiMatic Micrometer Head (Series 164)
  • DigiMatic Workshop Caliper (Series 552)
  • DigiMatic Height Gauge (Series 192, 570)

1All input converters use the Ditron/Sino/Aikron pinout. If your TDA-4xx adapter is configured for any other pinout, you will need to replace the pin mapping daughter board for the relevant axis inputs.
