Converter for Shahe 5403F Linear Scales

Converter for Shahe 5403F Linear Scales

Signal level converter for using a Shahe 5403F or 5401 quill scale on a Bridgeport-type mill with TouchDRO. Allows summing the quill and knee into a Z reading.

$49.00 USD
$49.00 USD
Sale Sold out
  • Ships in 2-5 business days
  • Shipping: $9.99 USD
View full details

Signal level converter for connecting Shahe 5403F (formerly 5403-xxxA) linear scales with a USB Mini-B cable to a TouchDRO TDA-410, TDA-420, or DIY kit. Also supports the Shahe 5401 vertical scale with a custom cable.

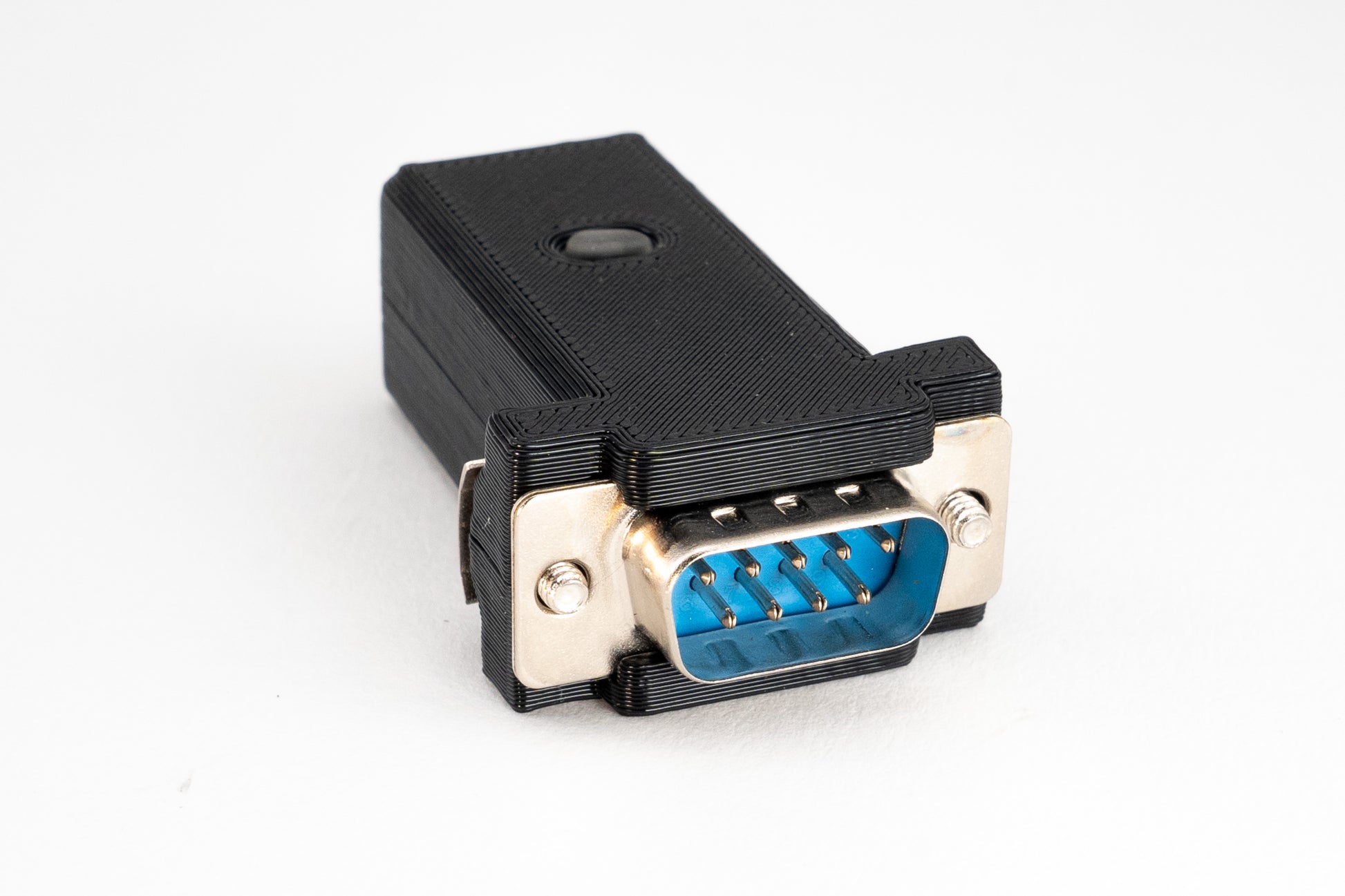

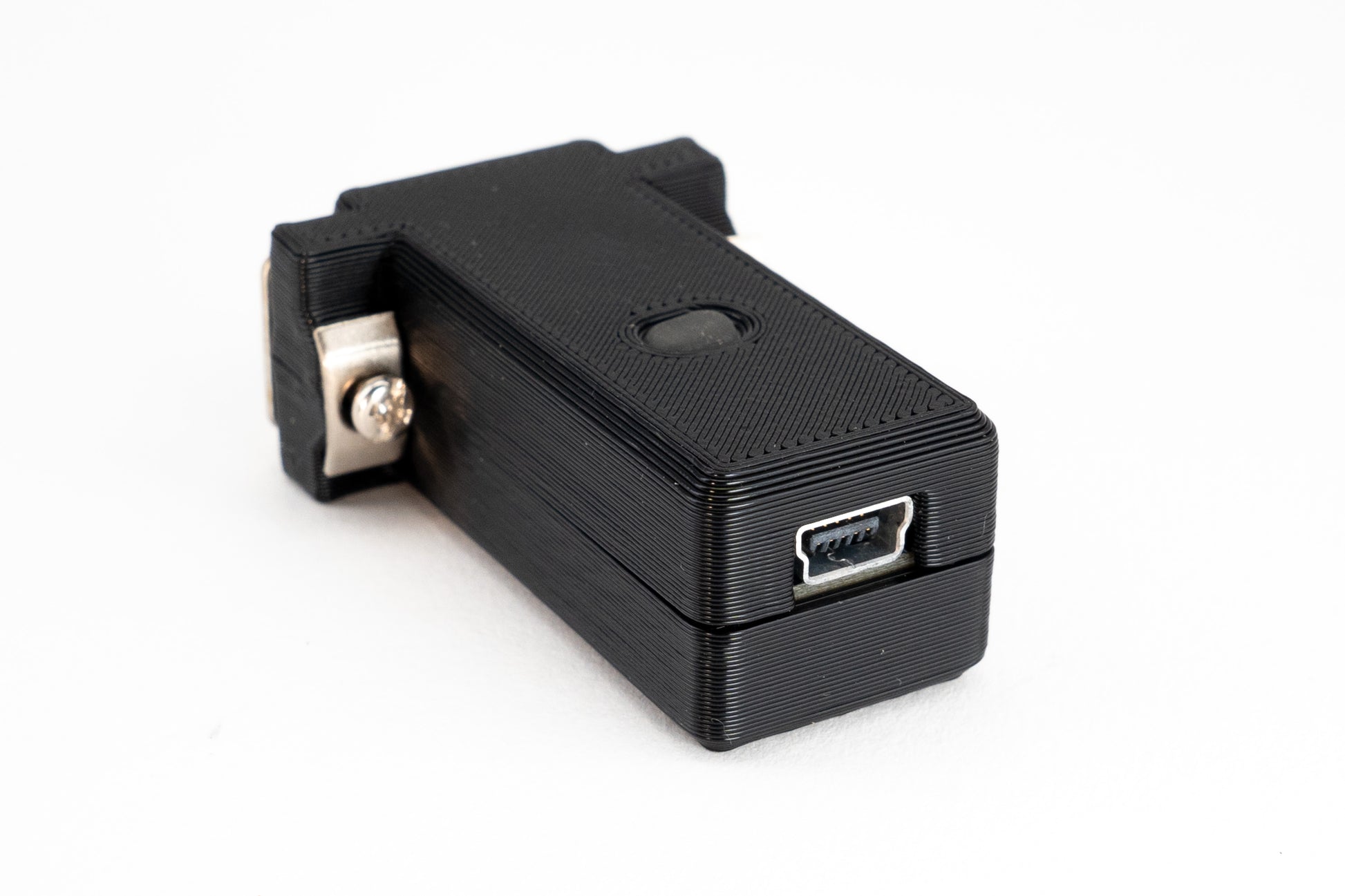

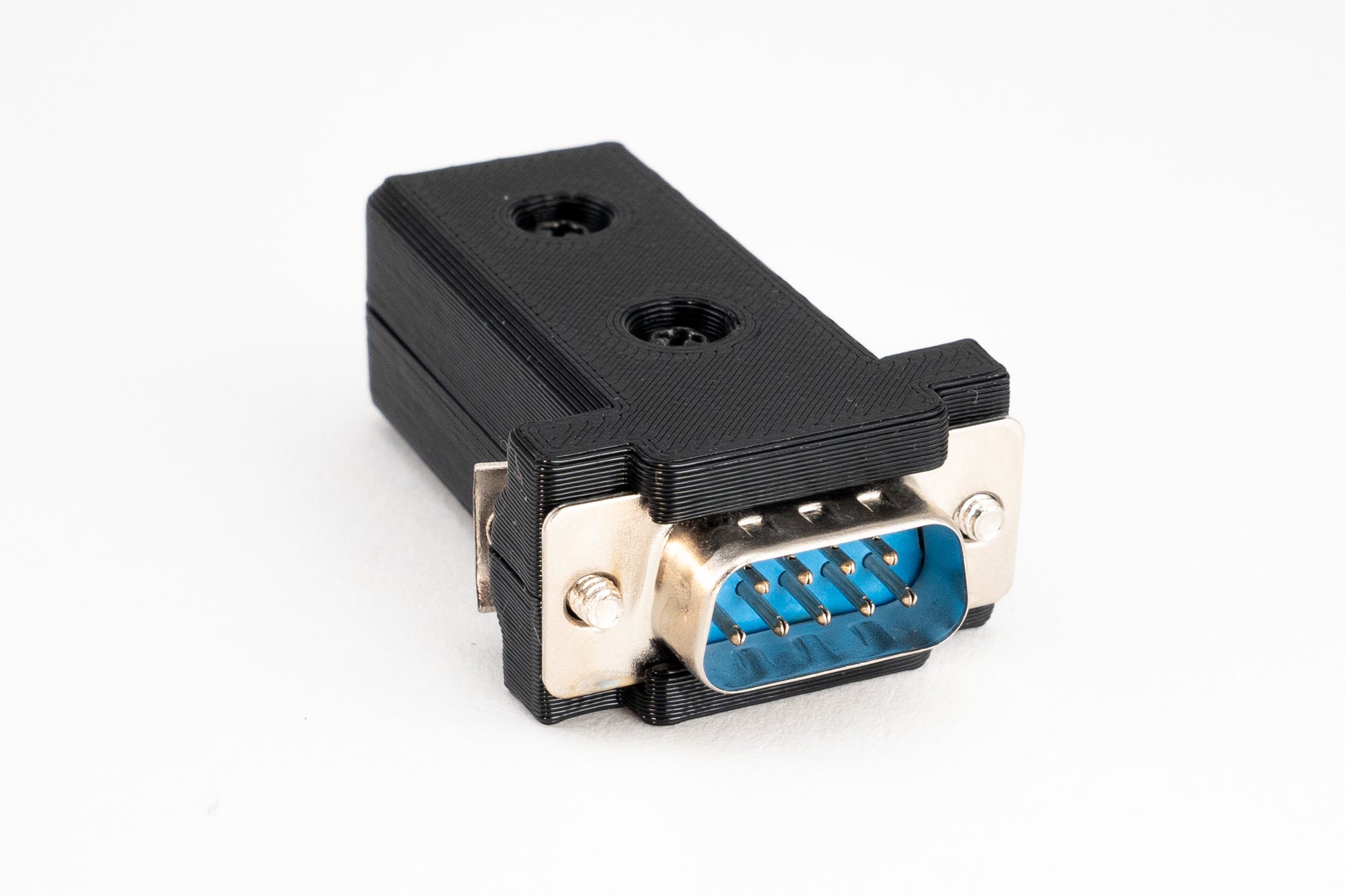

Shahe 5403F scale plugged into a TouchDRO adapter through the Shahe scale converter

System Requirements:

  • TouchDRO TDA-410* or TDA-420* scale interface adapter, or a DIY kit
  • Shahe 5403F scale, or Shahe 5401 scale with a custom cable (see the Vertical 5401 details)
  • TouchDRO V3 application build 2024-06-18 or newer

* The converter uses the default TouchDRO TDA-4xx pinout. If you've replaced your adapter's pin-mapping daughter board for a different pinout, you'll need the matching pin mapping board for these inputs.

Make sure the display that came with your scale looks like one of the displays below.

Supported Shahe 5403F scale displays
